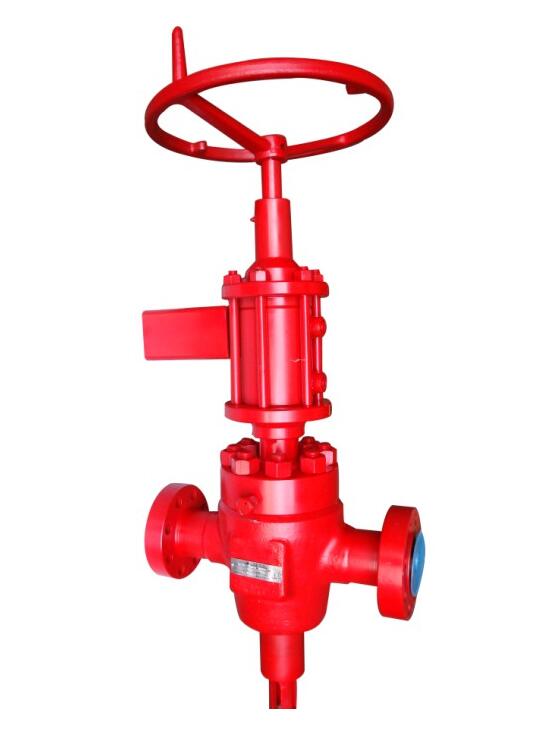

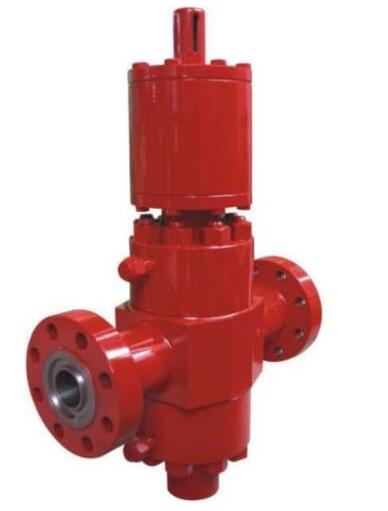

Hydraulic Slab Gate Valves
- Product description: YanCheng ValveDepot Manufacture Co., Ltd.'s "YPF" and "FC" series Hydraulic Slab Gate Valves, are designed and manufactured for use in all sorts of Wellhead, Frac Trees, High Pressure Manifolds
PRODUCT INTRODUCTION
YanCheng ValveDepot Manufacture Co., Ltd.'s "YPF" and "FC" series Hydraulic Slab Gate Valves, are designed and manufactured for use in all sorts of Wellhead, Frac Trees, High Pressure Manifolds, and Casing Valves, etc. All Valves conform to API specification 6A and NACE MR0175 requirements. Reasonably priced and with low cost spares parts these valves are the most cost effective Hydraulic Slab Gate Valves on the market.
√ The Hydraulic Actuator is intalled on the top of the bonnet which controls the operation of the valve using hydraulic pressure.
√ The backseat seal between the stem and the bonnet ease the changing of seals under pressure.
√ Designed, manufactured and tested in According to API 6A.
|
Bore Size |
2-1/16" to 7-1/16" |
|
Working Pressure Rating |
2,000psi to 20,000psi |
|
Material Class |
AA, BB, CC, DD, EE, FF |
|
Temperature Class |
K, L, P, R, S, T, U, V |
|
Product Specification Level |
PSL1 to PSL3 |
|
Performance Rating |
PR1 and PR2 |
|
End connections |
Flanged, Threaded, Union and BW |
|
Medium |
Oil, Gas, Water, etc |
