> Positive Choke Valves

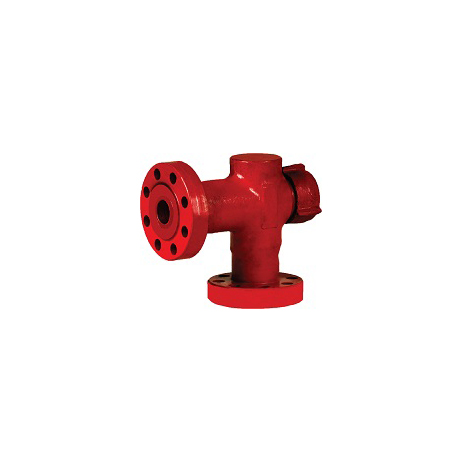

Positive Choke Valves
- Product description: Positive Chokes accommodate fixed orifice dimensions. All of our Adjustable Chokes can be converted into Positive Chokes by replacing the bonnet assembly with an appropriate blanking plug assembly and
PRODUCT INTRODUCTION
Positive Chokes accommodate fixed orifice dimensions. All of our Adjustable Chokes can be converted into Positive Chokes by replacing the bonnet assembly with an appropriate blanking plug assembly and choke bean.
√ Manufactured and tested in accordance with API 6A.
√ Positive chokes can be assembled as adjustable chokes.
Bore Size
2-1/16" to 7-1/16"
Working Pressure Rating
2000psi to 20,000psi
Material Class
AA, BB, CC, DD, EE, FF
Temperature Class
K, L, P, R, S, T, U, V
Product Specification Level
PSL1 to PSL3
Performance Rating
PR1 and PR2
End connections
Flanged, Threaded, Union and BW
Medium
Oil, Gas, Water, etc
